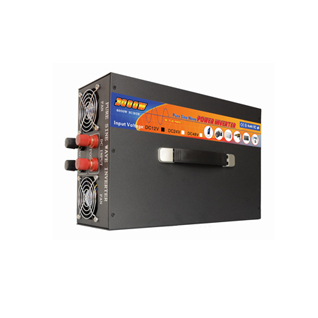

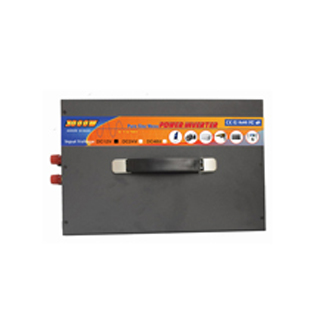

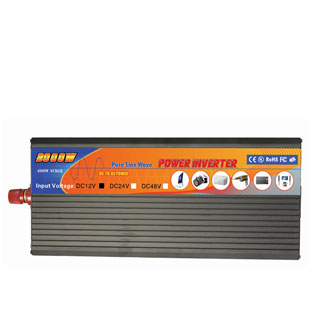

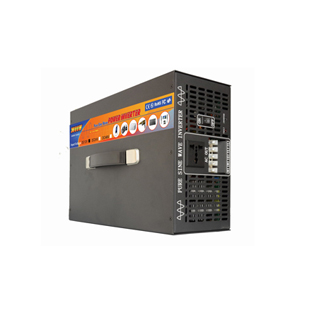

  • 3000W
  • Product Model : YK-3000Z
  • Content:*
  • Name:*
  • E-mail:*
  • Telephone:*
  • Code:*
  •
  •
  • Charcater

 Feature and advantage:
1. Efficiency: Up to 95%
2. The service life can reach a decade
3. Working noise is low and the efficiency is high
4. Strong ability of resist concussion
5. Good load ability: Inductive and capacitive load
6. Protection: Battery Low Alarm/Battery Shut down/Over Voltage/Over Temp/
7. Output Short/Input polarity reverse/Overload

Protection Function
1. Low voltage alarm & Shutdown
2. Over voltage protection
3. Overload protection
4. Over temperature protection
5. Short circuit protection
6. Reverse Polarity protection
7. Soft start
8. Auto reset after being in protected
9. Grounding protection



  • Application

 Application
1. Solar electric energy generation;
2. Wind power generation;
3. In-car or on-boat devices series
4. Communication equipment;
5. Industrial control system;
6. Small power supply system.

  • Customize Range

Regard as the pure sine wave inverter for telecom, we can customize below range

Input & Output voltage

Capacity

220vac output design

12vdc-220vac

300W 600W 1000W 1500W 2000W 3000W

24vdc-220vac

48vdc -220vac

120vac output design

12vdc-220vac

300W 600W 1000W 1500W 2000W 3000W

24vdc-220vac

48vdc -220vac

  • Specification

MODEL

YK-3000Z

OUTPUT

Continual Power

3000W

Surge power

6000W

Waveform

Pure sine wave

Frequency

50HZ or 60HZ

AC Regulation

5%

AC voltage

100/110/120VAC or 220/230/240VAC

INPUT

DC Voltage

12V or 24V or 48V

Voltage range

10-15VDC or 21-30VDC or 42-60VDC

No Load
Current Draw

<0.95

Efficiency

>95%

DC Connector

Cables with Clips OR Car Adapter

PROTECTING

Low Voltage Alarm

10VDC±0.5V or 20VDC±0.5V or 40VDC±0.5V

Low Voltage Shut down

9.5VDC±0.5V or 19VDC±0.5V or 38VDC±0.5C

Over Load

Shut Off Output

Over Voltage Shut down

14.5V or 30.0V or 61.0V

Over Thermal

Shut Off Output Automatically

Fuses

Short Circuit

ENVIRONMENT

Storage Temperature

Between -30℃ and +70℃

Working Temperature

Between -10℃ and +50℃

Working Humidity

20%~90%RH non-condensing

OTHERS

Start

Soft start

Cooling way

Cooling Fan

Total Harmonic Distortion

THD<4%

Size(mm)

370*220*160
