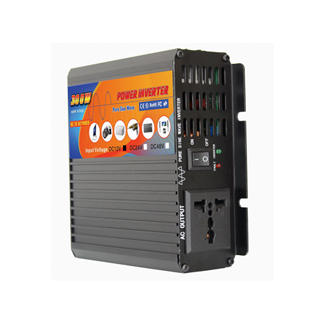

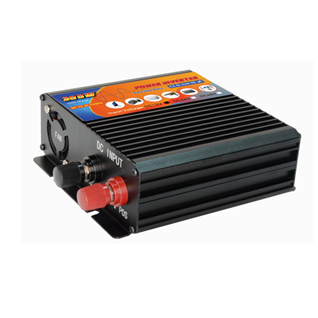

300W Portable Pure Sine Wave Inverter

300W
Product Model : YK-300Z

Charcater

Feature and advantage:
1. Efficiency: Up to 95%
2. The service life can reach a decade
3. Working noise is low and the efficiency is high
4. Strong ability of resist concussion
5. Good load ability: Inductive and capacitive load
6. Protection: Battery Low Alarm/Battery Shut down/Over Voltage/Over Temp/
7. Output Short/Input polarity reverse/Overload

Protection Function
1. Low voltage alarm & Shutdown
2. Over voltage protection
3. Overload protection
4. Over temperature protection
5. Short circuit protection
6. Reverse Polarity protection
7. Soft start
8. Auto reset after being in protected
9. Grounding protection

Application

Application
1. Solar electric energy generation;
2. Wind power generation;
3. In-car or on-boat devices series
4. Communication equipment;
5. Industrial control system;
6. Small power supply system.

Customize Range

Regard as the pure sine wave inverter for telecom, we can customize below range

Input & Output voltage	Capacity
220vac output design
12vdc-220vac	300W 600W 1000W 1500W 2000W 3000W
24vdc-220vac
48vdc -220vac
120vac output design
12vdc-220vac	300W 600W 1000W 1500W 2000W 3000W
24vdc-220vac
48vdc -220vac

Specification

MODEL		YK-300Z
OUTPUT	Continual Power	300W
	Surge power	600W
	Waveform	Pure sine wave
	Frequency	50HZ or 60HZ
	AC Regulation	5%
	AC voltage	100/110/120VAC or 220/230/240VAC
INPUT	DC Voltage	12V or 24V or 48V
	Voltage range	10-15VDC or 21-30VDC or 42-60VDC
	No Load Current Draw	<0.45
	Efficiency	>95%
	DC Connector	Cables with Clips OR Car Adapter
PROTECTING	Low Voltage Alarm	10VDC±0.5V or 20VDC±0.5V or 40VDC±0.5V
	Low Voltage Shut down	9.5VDC±0.5V or 19VDC±0.5V or 38VDC±0.5C
	Over Load	Shut Off Output
	Over Voltage Shut down	14.5V or 30.0V or 61.0V
	Over Thermal	Shut Off Output Automatically
	Fuses	Short Circuit
ENVIRONMENT	Storage Temperature	Between -30℃ and +70℃
	Working Temperature	Between -10℃ and +50℃
	Working Humidity	20%～90%RH non-condensing
OTHERS	Start	Soft start
	Cooling way	Cooling Fan
	Total Harmonic Distortion	THD<4%
	Size(mm)	13015050
