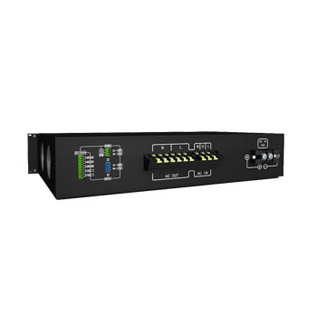

YK-DA-HD series pure sine wave Inverter / Power Inverter / Inverter Power Supply is a new device which of 110VDC to 220VAC inverter dc ac can invert the DC to AC, special design for the electric power system.
1. Software protection and hardware protection, high reliability
2. Perfect protection: input polarity reverse, input over/under voltage, over current, short circuit, over heat. Also the soft start function
3. 3 Layers composite filter and magnetism shielded which of 110VDC to 220VAC inverter dc ac can reduce the reflect noise voltage to the input port, perfect electromagnetism compatibility.
4. Intelligent Fan
5. 110VDC to 220VAC inverter dc ac can connect with pure sensibility load (Should reduce voltage)
1.Along with the quick development of information network technology, Inverter / Power Inverter / Inverter Power Supply is a new DC to AC conversion power supply.
2.The inverter power supply is widely used in the fields such as Telecom, Mobile, Unicom, Aviation and spaceflight, finance management, OA, industrial auto control, medical treatment and sanitation, military affairs, scientific research etc.
3.Use the battery DC as input, after inverting,it will output the pure sine wave AC. The output voltage and frequency is ultra-reliable and and work continuously in long time. Inverter can eliminate the disadvantage such as power interrupt, un constant voltage, noise interfere and surge etc.
Regard as the pure sine wave inverter for telecom, we can customize below range
Input & Output voltage |
Capacity |
|
|
|
220vac output design |
|
|
24vdc-220vac |
1-5KVA |
|
48vdc -220vac |
1-6KVA & 8KVA |
|
110vdc -220vac |
1-6KVA & 8KVA |
|
220vdc-220vac |
1-6KVA & 8KVA& 10KVA |
|
120vac output design |
|
|
24vdc-220vac |
1-5KVA |
|
48vdc -220vac |
1-6KVA |
|
110vdc -220vac |
1-6KVA |
Order List for 220VAC output design
| Model |
DC Main Input |
AC bypass Input |
AC Output & Frequency |
Capacity |
Noted |
|
48VDC to 220VAC 1-8KVA |
|||||
|
YKDA-HT1000 |
48VDC |
AC220V |
AC220V |
1KVA |
2U/19inch |
|
YKDA-HT2000 |
2KVA |
||||
|
YKDA-HT3000 |
3KVA |
||||
|
YKDA-HT4000 |
4KVA |
2U/19inch |
|||
|
YKDA-HT5000 |
5KVA |
||||
|
YKDA-HT6000 |
6KVA |
||||
|
YKDA-HT8000 |
8KVA |
4U/19inch |
|||
|
110VDC to 220VAC 1-8KVA |
|||||
|
YKDA-HD1000 |
110VDC |
AC220V |
AC220V |
1KVA |
2U/19inch |
|
YKDA-HD2000 |
2KVA |
||||
|
YKDA-HD3000 |
3KVA |
||||
|
YKDA-HD4000 |
4KVA |
2U/19inch |
|||
|
YKDA-HD5000 |
5KVA |
||||
|
YKDA-HD6000 |
6KVA |
||||
|
YKDA-HD8000 |
8KVA |
4U/19inch |
|||
|
220VDC to 220VAC 1-10KVA |
|||||
|
YKDA-HD1000 |
220VDC |
AC220V |
AC220V |
1KVA |
2U/19inch |
|
YKDA-HD2000 |
2KVA |
||||
|
YKDA-HD3000 |
3KVA |
||||
|
YKDA-HD4000 |
4KVA |
2U/19inch |
|||
|
YKDA-HD5000 |
5KVA |
||||
|
YKDA-HD6000 |
6KVA |
||||
|
YKDA-HD8000 |
8KVA |
4U/19inch |
|||
|
YKDA-HD10000 |
10KVA |
||||
|
24VDC to 220VAC 1-5KVA |
|||||
|
YKDA-HT1000 |
24VDC |
AC220V |
AC220V |
1KVA |
2U/19inch |
|
YKDA-HT2000 |
2KVA |
||||
|
YKDA-HT3000 |
3KVA |
||||
|
YKDA-HT4000 |
4KVA |
2U/19inch |
|||
|
YKDA-HT5000 |
5KVA |
||||
Order List for 120VAC output design
Model |
DC Main Input |
AC bypass Input |
AC Output & Frequency |
Capacity |
Noted |
|
24VDC To 120VAC (1-5KVA) |
|||||
|
YKDA-HT1000 |
24VDC |
110Vac/220Vac |
110vac/ |
1KVA |
19Inch 2U |
|
YKDA-HT2000 |
2KVA |
||||
|
YKDA-HT3000 |
3KVA |
19Inch 2U |
|||
|
YKDA-HT4000 |
4KVA |
19Inch 4U |
|||
|
YKDA-HT5000 |
5KVA |
||||
|
48VDC to 120Vac (1-6KVA) |
|||||
|
YKDA-HT1000 |
24VDC |
110Vac/220Vac |
110vac/ |
1KVA |
19Inch 2U |
|
YKDA-HT2000 |
2KVA |
||||
|
YKDA-HT3000 |
3KVA |
19Inch 2U |
|||
|
YKDA-HT4000 |
4KVA |
||||
|
YKDA-HT5000 |
5KVA |
19Inch 4U |
|||
|
YKDA-HT6000 |
6KVA |
||||
|
110VDC to 120Vac (1-6KVA) |
|||||
|
YKDA-HD1000 |
24VDC |
110Vac/220Vac |
110vac/ |
1KVA |
19Inch 2U |
|
YKDA-HD2000 |
2KVA |
||||
|
YKDA-HD3000 |
3KVA |
19Inch 2U |
|||
|
YKDA-HD4000 |
4KVA |
||||
|
YKDA-HD5000 |
5KVA |
19Inch 4U |
|||
|
YKDA-HD6000 |
6KVA |
||||
Technical Parameter
|
Model (YKDA-HD**) |
500 |
1000 |
2000 |
3000 |
4000 |
5000 |
6000 |
8000 |
|||||||
|
Rate capacity（VA） |
0.5 |
1 |
2 |
3 |
4 |
5 |
6 |
8 |
|||||||
|
Rate output power |
400 |
800 |
1600 |
2400 |
3200 |
4000 |
4800 |
6400 |
|||||||
|
Dc input |
Rated input voltage |
110VDC |
|||||||||||||
|
Rate input Current |
6A |
11A |
22A |
33.3A |
44.4A |
55.6A |
66.7A |
77.8 |
|||||||
|
Shut down voltage range |
94V～132V |
||||||||||||||
|
Start-up voltage range |
101V～127V |
||||||||||||||
|
Reflect noise current |
≤10% |
||||||||||||||
|
AC Input |
Allow bypass voltage |
220Vac±15% |
|||||||||||||
|
Rate input Current |
2.3A |
4.5A |
9.1A |
13.6A |
18.2A |
22.7A |
27.3A |
31.9 |
|||||||
|
Bypass switch time |
≤5ms |
||||||||||||||
|
AC output |
Rate output voltage and frequency |
220Vac,50Hz |
|||||||||||||
|
Waveform |
Pure Sine Wave |
||||||||||||||
|
Rate output current |
1.8A |
3.6A |
7.2A |
10.8A |
14.5A |
15.9A |
19.1A |
22.3 |
|||||||
|
Output voltage precision |
220V±1.5% |
||||||||||||||
|
Output frequency precision |
50Hz±0.1% |
||||||||||||||
|
Waveform distortion |
≤3% (linear load) (THD) |
||||||||||||||
|
Dynamic respond time |
5% (Load0←→100%) |
||||||||||||||
|
Power factor |
0.7/0.8 |
||||||||||||||
|
Overload ability |
120%,30s |
||||||||||||||
|
Efficiency |
≥85% |
||||||||||||||
|
Insulating intensity |
1500Vac,1min |
||||||||||||||
|
Noise (1m) |
≤40dB |
||||||||||||||
|
Operation temperature |
-5℃～40℃ |
||||||||||||||
|
Humility |
0～90%, non condensing |
||||||||||||||
|
Operation altitude |
≤1000m |
||||||||||||||
|
Inverter status |
Mains supply is normal, invert normal, battery under voltage, output overloading |
||||||||||||||
|
Shape |
19Inch(2U) (mm) |
482*88.8*252 |
482*88.8*352 |
482*88.8*382 |
483*176*414 |
||||||||||
|
Weight |
5Kg |
7Kg |
8Kg |
11Kg |
15Kg |
17Kg |
18Kg |
||||||||
|
Standalone type(W*H*L) (mm) |
/ |
175*274*452 |
220*330*452 |
176*518*474.6 |
|||||||||||
|
Weight |
/ |
8Kg |
9Kg |
12Kg |
13Kg |
15Kg |
20Kg |
||||||||
|
Color |
Grey/White |
Black |
|||||||||||||
|
Protect function |
Input under/over voltage, output overloading, short circuit, city power high-low voltage protection |
||||||||||||||
|
Output mode |
Socket or terminal block |
Terminal block |
|||||||||||||
Order List for 220VAC output design
|
DC Main Input |
AC bypass Input |
AC Output & Frequency |
Capacity |
Noted |
|
|
48VDC to 220VAC 1-8KVA |
|||||
|
YKDA-HT1000 |
48VDC |
AC220V |
AC220V |
1KVA |
2U/19inch |
|
YKDA-HT2000 |
2KVA |
||||
|
YKDA-HT3000 |
3KVA |
||||
|
YKDA-HT4000 |
4KVA |
2U/19inch |
|||
|
YKDA-HT5000 |
5KVA |
||||
|
YKDA-HT6000 |
6KVA |
||||
|
YKDA-HT8000 |
8KVA |
4U/19inch |
|||
|
110VDC to 220VAC 1-8KVA |
|||||
|
YKDA-HD1000 |
110VDC |
AC220V |
AC220V |
1KVA |
2U/19inch |
|
YKDA-HD2000 |
2KVA |
||||
|
YKDA-HD3000 |
3KVA |
||||
|
YKDA-HD4000 |
4KVA |
2U/19inch |
|||
|
YKDA-HD5000 |
5KVA |
||||
|
YKDA-HD6000 |
6KVA |
||||
|
YKDA-HD8000 |
8KVA |
4U/19inch |
|||
|
220VDC to 220VAC 1-10KVA |
|||||
|
YKDA-HD1000 |
220VDC |
AC220V |
AC220V |
1KVA |
2U/19inch |
|
YKDA-HD2000 |
2KVA |
||||
|
YKDA-HD3000 |
3KVA |
||||
|
YKDA-HD4000 |
4KVA |
2U/19inch |
|||
|
YKDA-HD5000 |
5KVA |
||||
|
YKDA-HD6000 |
6KVA |
||||
|
YKDA-HD8000 |
8KVA |
4U/19inch |
|||
|
YKDA-HD10000 |
10KVA |
||||
|
24VDC to 220VAC 1-5KVA |
|||||
|
YKDA-HT1000 |
24VDC |
AC220V |
AC220V |
1KVA |
2U/19inch |
|
YKDA-HT2000 |
2KVA |
||||
|
YKDA-HT3000 |
3KVA |
||||
|
YKDA-HT4000 |
4KVA |
2U/19inch |
|||
|
YKDA-HT5000 |
5KVA |
||||
