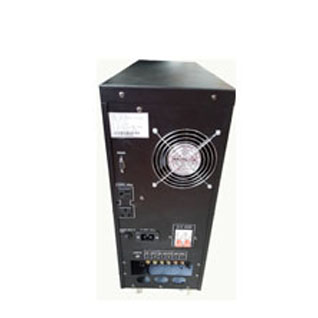

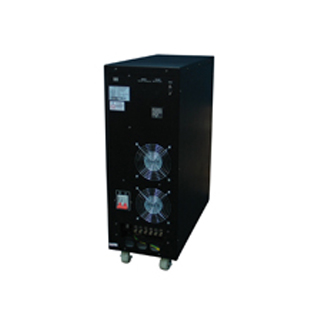

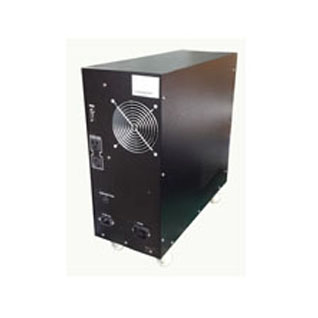

  • YK-DA-WD (110Vdc to 220Vac)
  • Product Model :
  • Content:*
  • Name:*
  • E-mail:*
  • Telephone:*
  • Code:*
  •
  •
  • Charcater

YK-DA-WD Series Inverter / Power Inverter / Inverter Power Supply of YK-DA-WD (110Vdc to 220Vac) dc to ac inverter for car adopts the advanced SPWM and CUP control technology. With the strong points such as high reliability, perfect protection function, low waveform distortion and lower price etc. The inverter of YK-DA-WD (110Vdc to 220Vac) dc to ac inverter for car has high invert efficiency (in the condition of full load, the invert efficiency can be up to 85%). At the same time, this inverter of YK-DA-WD (110Vdc to 220Vac) dc to ac inverter for car has strong non liner load driving capability. Also, Inverter can control the monitor the input voltage/current, output voltage/current. Inverter can realize the function of unattended operation .


Main Characteristics
1. Adopts the advanced SPWM and CUP control technology
2. High reliability, input/output isolated, safe and high efficiency, low waveform distortion
3. Perfect protection:
4. Output overload protection
Input reverse connection protection
Output over voltage protection
Input under voltage protection
Output short circuit protection
Input over voltage protection;
5. Auto bypass switch,uninterrupted operation;


  • Application

Regard as the pure sine wave inverter for telecom, we can customize below range


Input & Output voltage

Capacity

  1. With LCD+LED Display
  2. With RS232 Communication port
  3. Power Factor 0.8

220vac output design

48vdc -220vac

1-50KVA

110vdc -220vac

1-50KVA

220vdc-220vac

1-50KVA

120vac output design

48vdc -220vac

1-50KVA

110vdc -220vac

1-50KVA

  • Customize Range

Model
YK-DA-WD** Series

1

2

3

4

5

6

10

15

20

Capacity KVA

1

2

3

4

5

6

10

15

20

110V DC INPUT

Bypass
input voltage

220Vac±20%,50Hz±10%

DC input voltage range

95Vdc~150Vdc

DC Input Voltage Shutdown

90Vdc~150Vdc

Rated input voltage(Vdc)

110VDC

Rated input  current(A)

9

17

26

34

43

51

86

128

171

DC input voltage range

190Vdc~300Vdc

AC OUTPUT

Rated output current(A)

7

14

21

29

36

43

72

109

145

Rated output power(KW)

0.8

1.6

2.4

3.2

4.0

4.8

8.0

12

16

Rated output voltage and frequency

220Vac±20%;220Vac±2%(Inverter Status);50Hz±1%

Power factor(PF)

0.8

Output waveform

sine wave

Waveform distortion rate(THD)

≤3%

Dynamic load voltage transients

±5%(Load 0 ~ 100% jump)

Overload

(125 ~ 150%) change to the bypass automatically after 30 seconds and it will recover until the load is normal when it work more than 150%, 200ms ,it will change to the bypass and can not be restored any more

Full Load Efficiency

≥99% or ≥85% (Inverter Status);

Bypass Conversion Time

≤6ms

Protecting

Overload, battery low-voltage, under voltage, overvoltage, system wrong

Operation environment

Insulating intensity

Insulating intensity

Cooling

Cooling

noise(1m)

noise(1m)

Operating temperature

Operating temperature(℃)

Related humility

Related humility

Altitude (M)

Altitude (M)

External dimension

19inch Rack and Standalone type can be option
