  • Charcater

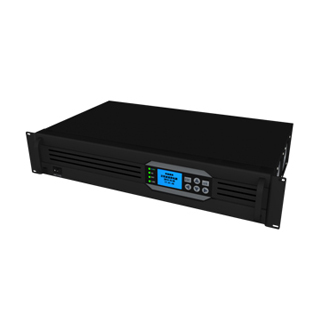

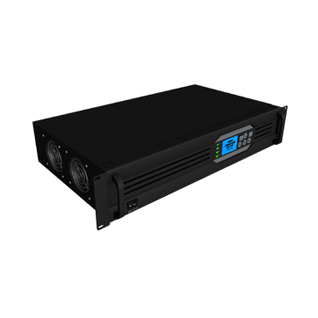

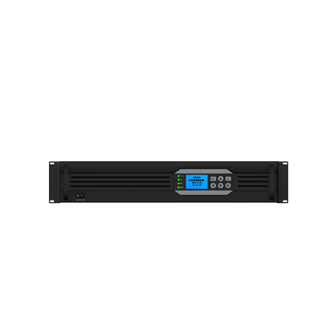

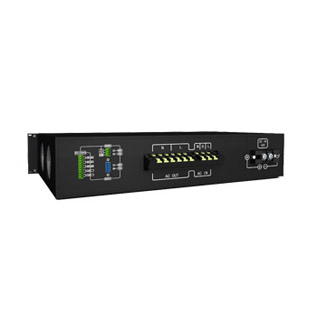

YK-DA-HT series pure sine wave Inverter / Power Inverter / Inverter Power Supply is a new device which of 24VDC to 120VAC power inverter dc to ac can invert the DC to AC, special design for the electric power system.
1. Software protection and hardware protection, high reliability
2. Perfect protection: input polarity reverse, input over/under voltage, over current, short circuit, over heat. Also the soft start function
3. 3 Layers composite filter and magnetism shielded which of 24VDC to 120VAC power inverter dc to ac can reduce the reflect noise voltage to the input port, perfect elect
4. Intelligent Fan romagnetism compatibility.
5. 24VDC to 120VAC power inverter dc to ac can connect with pure sensibility load (Should reduce voltage)

  • Customize Range

Regard as the pure sine wave inverter for telecom, we can customize below range

Input & Output voltage

Capacity

  1. 19Inch 2U/4U Rack Mount
  2. With LCD+LED Display
  3. With RS232 Communication port
  4. Power Factor 0.8

220vac output design

24vdc-220vac

1-5KVA

48vdc -220vac

1-6KVA & 8KVA

110vdc -220vac

1-6KVA & 8KVA

220vdc-220vac

1-6KVA & 8KVA& 10KVA

120vac output design

24vdc-120vac

1-5KVA

48vdc -120vac

1-6KVA

110vdc -120vac

1-6KVA

  • Specification

Technical Parameter

Model (YKDA-HT**)

1000

2000

3000

4000

5000

Rate capacity(VA)

1

2

3

4

5

Rate output power

800

1600

2400

3200

4000

Dc input

Rated input voltage

24VDC

Rate input Current

42A

83A

125A

167A

208A

Shut down voltage range

20V—30V

Start-up voltage range

22V—28V

Reflect noise current

≤10%

AC Input

Allow bypass voltage

132V-90V(±10V)

Rate input Current

8.3A

16.6A

25A

33.3A

42A

Bypass switch time

≤5ms

AC output

Rate output voltage and frequency

120Vac,50Hz

Waveform

Pure Sine Wave

Rate output current

6.7A

13.3A

20A

27A

33.3A

Output voltage precision

120V±1.5%

Output frequency precision

50±0.1%Or60±0.1%

Waveform distortion

≤3%  (linear load) (THD)

Dynamic respond time

5%  (Load0←→100%)

Power factor

0.7/0.8

Overload ability

120%,30s

Efficiency

≥85%

Insulating intensity

1500Vac,1min

Noise (1m)

≤40dB

Operation temperature

50±0.1%Or60±0.1%
-20℃~+50℃

Humility

0~90%, non condensing

Operation altitude

≤1000m

Inverter status

Mains supply is normal, invert normal, battery under voltage, output overloading

Protect function

Input under/over voltage, output overloading, short circuit, city power high-low voltage protection

Output mode

Terminal block



Order List for 120VAC output design

Model

DC Main Input

AC bypass Input

AC Output & Frequency

Capacity

Noted

24VDC To 120VAC (1-5KVA)

YKDA-HT1000

24VDC

110Vac/220Vac

110vac/
120vac
50hz 60hz

1KVA

19Inch 2U
482*347*88(mm)

YKDA-HT2000

2KVA

YKDA-HT3000

3KVA

19Inch 2U
482*430*88(mm)

YKDA-HT4000

4KVA

19Inch 4U
482*480*176(mm)

YKDA-HT5000

5KVA

48VDC to 120Vac (1-6KVA)

YKDA-HT1000

24VDC

110Vac/220Vac

110vac/
120vac
50hz 60hz

1KVA

19Inch 2U
482*347*88(mm)

YKDA-HT2000

2KVA

YKDA-HT3000

3KVA

19Inch 2U
482*430*88(mm)

YKDA-HT4000

4KVA

YKDA-HT5000

5KVA

19Inch 4U
482*480*176(mm)

YKDA-HT6000

6KVA

110VDC to 120Vac (1-6KVA)

YKDA-HD1000

24VDC

110Vac/220Vac

110vac/
120vac
50hz 60hz

1KVA

19Inch 2U
562*492*195(mm)

YKDA-HD2000

2KVA

YKDA-HD3000

3KVA

19Inch 2U
575*562*195(mm)

YKDA-HD4000

4KVA

YKDA-HD5000

5KVA

19Inch 4U
590*570*420(mm)

YKDA-HD6000

6KVA
