Product Model : YKDA-HD Series

Charcater

YKDA-HD series pure sine wave Inverter / Power Inverter / Inverter Power Supply is a new device which of 110VDC to 120VAC high frequency inverter can invert the DC to AC, special design for the electric power system.
1. Software protection and hardware protection, high reliability
2. Perfect protection: input polarity reverse, input over/under voltage, over current, short circuit, over heat. Also the soft start function
3. 3 Layers composite filter and magnetism shielded which of 110VDC to 120VAC high frequency inverter can reduce the reflect noise voltage to the input port, perfect electromagnetism compatibility.
4. Intelligent Fan
5.110VDC to 120VAC high frequency inverter can connect with pure sensibility load (Should reduce voltage)

Customize Range

Regard as the pure sine wave inverter for telecom, we can customize below range

Input & Output voltage	Capacity

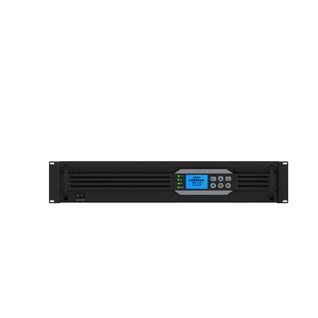

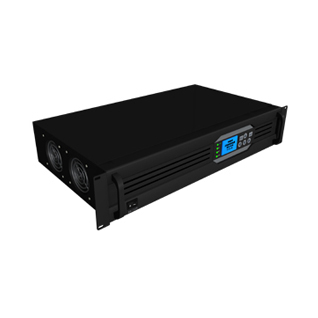

19Inch 2U/4U Rack Mount With LCD+LED Display With RS232 Communication port Power Factor 0.8
220vac output design
24vdc-220vac	1-5KVA
48vdc -220vac	1-6KVA & 8KVA
110vdc -220vac	1-6KVA & 8KVA
220vdc-220vac	1-6KVA & 8KVA& 10KVA
120vac output design
24vdc-120vac	1-5KVA
48vdc -120vac	1-6KVA
110vdc -120vac	1-6KVA

Specification

Technical Parameter

Model (YKDA-HD)**		1000	2000	3000	4000		5000		6000		8000
Rate capacity（VA）		1	2	3	4		5		6		8
Rate output power		800	1600	2400	3200		4000		4800		6400
Dc input	Rated input voltage	110VDC
	Rate input Current	8.3A	17A	25A	33.3A		41.6A		50A		66.6A
	Shut down voltage range	90V—139V
	Start-up voltage range	104V—131V
	Reflect noise current	≤10%
AC Input	Allow bypass voltage	132V-90V(±10V)
	Rate input Current	8.3A	16.7A	26A	33.3A		41.6A		50A		66.6A
	Bypass switch time	≤5ms
AC output	Rate output voltage and frequency	120Vac,50Hz
	Waveform	Pure Sine Wave
	Rate output current	6.7A	13.3A	20A	27A	33.3A		40A		53.3A
	Output voltage precision	120VAC±1.5%
	Output frequency precision	50±0.1%Or60±0.1%
	Waveform distortion	≤3% (linear load) (THD)
	Dynamic respond time	5% (Load0←→100%)
	Power factor	0.7/0.8
	Overload ability	120%,30s
	Efficiency	≥85%
Insulating intensity		1500Vac,1min
Noise (1m)		≤40dB
Operation temperature		50±0.1%Or60±0.1% -20℃~+50℃
Humility		0～90%, non condensing
Operation altitude		≤1000m
Inverter status		Mains supply is normal, invert normal, battery under voltage, output overloading
Protect function		Input under/over voltage, output overloading, short circuit, city power high-low voltage protection

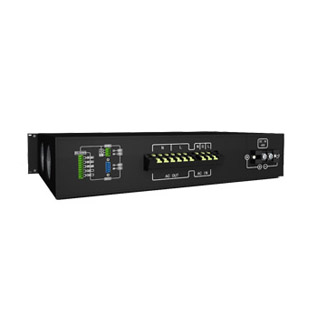

Output mode		Terminal block

Order List for 120VAC output design

Model	DC Main Input	AC bypass Input	AC Output & Frequency	Capacity	Noted
24VDC To 120VAC (1-5KVA)
YKDA-HT1000	24VDC	110Vac/220Vac	110vac/ 120vac 50hz 60hz	1KVA	19Inch 2U 48234788(mm)
YKDA-HT2000				2KVA
YKDA-HT3000				3KVA	19Inch 2U 48243088(mm)
YKDA-HT4000				4KVA	19Inch 4U 482480176(mm)
YKDA-HT5000				5KVA
48VDC to 120Vac (1-6KVA)
YKDA-HT1000	24VDC	110Vac/220Vac	110vac/ 120vac 50hz 60hz	1KVA	19Inch 2U 48234788(mm)
YKDA-HT2000				2KVA
YKDA-HT3000				3KVA	19Inch 2U 48243088(mm)
YKDA-HT4000				4KVA
YKDA-HT5000				5KVA	19Inch 4U 482480176(mm)
YKDA-HT6000				6KVA
110VDC to 120Vac (1-6KVA)
YKDA-HD1000	24VDC	110Vac/220Vac	110vac/ 120vac 50hz 60hz	1KVA	19Inch 2U 562492195(mm)
YKDA-HD2000				2KVA
YKDA-HD3000				3KVA	19Inch 2U 575562195(mm)
YKDA-HD4000				4KVA
YKDA-HD5000				5KVA	19Inch 4U 590570420(mm)
YKDA-HD6000				6KVA
