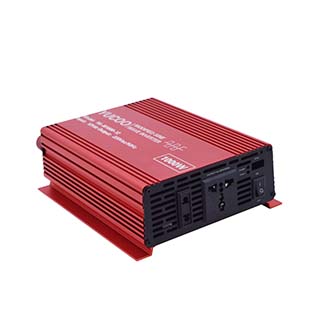

Modified Sine Wave Inverter 1000W

lPortable and convenient, USB port 5V/2A

lHigh Efficiency,Small Size, Light Weight

lAnti-fall Aluminum shell

lLed light indication

lIntelligent fan,Energy-saving

lMuti-protection:Low Voltage/Over Voltage/Over Load/Short Circuit/Over Temperature

lNecessary for trip/Vehicle/Camping etc.

lResistive load: iodine tungsten lamp, incandescent lamp, resistance stove, oven, electric water heater, etc.

lCapacitive load: TV, computer, DVD, etc.

NOTE : Please avoid to use it with Inductive load, such as induction cooker, air conditioner, motor, etc.

Regard as the inverter we can customize different specification according to your request

DC Input voltage: 12V / 24V / 48V / 60V

AC output:110Vac/220Vac±10%,50/60Hz,±2Hz

Rate Power:300W / 500W / 800W / 1000W / 1300W / 1500W / 2000W / 3000W

Peak Power 600W / 1000W / 1600W / 2000W / 2600W / 3000W / 4000W / 6000W

YUCOO Modified Sine Wave Invervter
Model	YK-N300	YK-N500	YK-N800	YK-M1000	YK-M1300	YK-M1500	YK-M2000	YK-M3000
Rate Power	300w	500w	800w	1000w	1300w	1500w	2000w	3000w
Peak Power	600w	1000w	1600w	2000w	2600w	3000w	4000w	6000w
DC Input Voltage	12v / 24v / 48v / 60v
Output
Output Wave	Modified Sine wave
AC Output Voltage	110v/220v,±10%
Frequency	50/60Hz,±2Hz
Efficiency	>85%
USB Output	5V/2A(12V,24V)
Protection
Low Voltage	9v ±0.5v ,19v ±1.0v , 36v ± 2.0v , 45v ±2.5v, Restart after recoery
Over Voltage	15v ±0.5v , 32v ±1.0v , 60v ± 2.0v , 75v ±2.5v, Restart after recoery
Overload	>300W	>500W	>800W	>1000W	>1300W	>1500W	>2400W	>3000W
Short Circuit	>3000W	>5000W	>7000W	>10KW	>10KW	>15KW	>10KW	>15KW
No Load Current	<0.4A	<0.8A	<0.9A	<1.0A	<1.1A	<1.1A	<1.8A	<2.6A
Over Temperature	>90℃
Mechanical properties
Environment Temperature	- 40℃ － 50℃

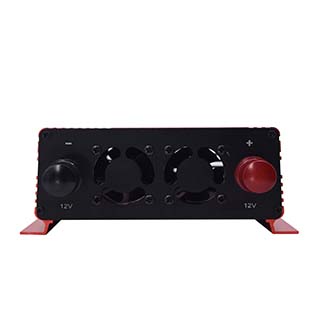

Input Terminal	Terminal form

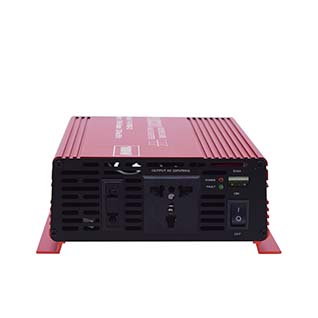

Output Socket	Universal socket
Product Size/mm	1279556	1589556	2009556	20217068	24217068	22222093	33222093	39222093
N.W./kg	0.45	0.55	0.76	1.4	1.8	2.4	4	4.9
G.W/kg	0.6	0.7	0.95	1.75	2.4	3.2	4.7	5.8
Shell Material	Aluminum-magnesium alloy
