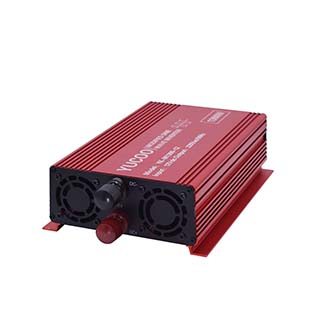

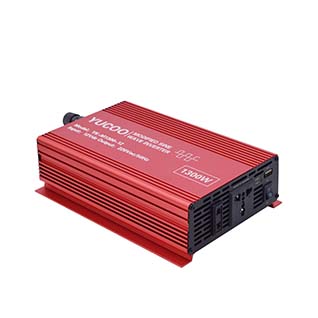

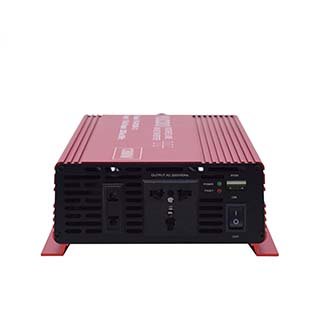

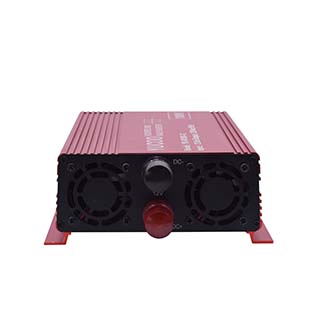

  • Modified Sine Wave Inverter 1300W
  • Product Model : YK-M1300-XX
  • Content:*
  • Name:*
  • E-mail:*
  • Telephone:*
  • Code:*
  •
  •
  • Charcater

lPortable and convenient, USB port 5V/2A

lHigh Efficiency,Small Size, Light Weight

lAnti-fall Aluminum shell

lLed light indication

lIntelligent fan,Energy-saving

lMuti-protection:Low Voltage/Over Voltage/Over Load/Short Circuit/Over Temperature

lNecessary for trip/Vehicle/Camping etc.

  • Application

lResistive load: iodine tungsten lamp, incandescent lamp, resistance stove, oven, electric water heater, etc.

lCapacitive load: TV, computer, DVD, etc.


NOTE : Please avoid to use it with Inductive load, such as induction cooker, air conditioner, motor, etc.

  • Customize Range

Regard as the inverter we can customize different specification according to your request

DC Input voltage: 12V / 24V / 48V / 60V

AC output:110Vac/220Vac±10%,50/60Hz,±2Hz

Rate Power:300W / 500W / 800W / 1000W / 1300W / 1500W / 2000W / 3000W

Peak Power 600W / 1000W / 1600W / 2000W / 2600W / 3000W / 4000W / 6000W

  • Specification



YUCOO Modified Sine Wave Invervter

Model

YK-N300

YK-N500

YK-N800

YK-M1000

YK-M1300

YK-M1500

YK-M2000

YK-M3000

Rate Power

300w

500w

800w

1000w

1300w

1500w

2000w

3000w

Peak Power

600w

1000w

1600w

2000w

2600w

3000w

4000w

6000w

DC Input Voltage

12v / 24v / 48v / 60v

Output

Output Wave

Modified Sine wave

AC Output Voltage

110v/220v,±10%

Frequency

50/60Hz,±2Hz

Efficiency

>85%

USB Output

5V/2A(12V,24V)

Protection

Low Voltage

9v ±0.5v ,19v ±1.0v , 36v ± 2.0v , 45v ±2.5v, Restart after recoery

Over Voltage

15v ±0.5v , 32v ±1.0v , 60v ± 2.0v , 75v ±2.5v, Restart after recoery

Overload

>300W

>500W

>800W

>1000W

>1300W

>1500W

>2400W

>3000W

Short Circuit

>3000W

>5000W

>7000W

>10KW

>10KW

>15KW

>10KW

>15KW

No Load Current

<0.4A

<0.8A

<0.9A

<1.0A

<1.1A

<1.1A

<1.8A

<2.6A

Over Temperature

>90

Mechanical properties

Environment Temperature

- 40  50

Input Terminal

Terminal form

Output Socket

Universal socket

Product Size/mm

127*95*56

158*95*56

200*95*56

202*170*68

242*170*68

222*220*93

332*220*93

392*220*93

N.W./kg

0.45

0.55

0.76

1.4

1.8

2.4

4

4.9

G.W/kg

0.6

0.7

0.95

1.75

2.4

3.2

4.7

5.8

Shell Material

Aluminum-magnesium alloy
