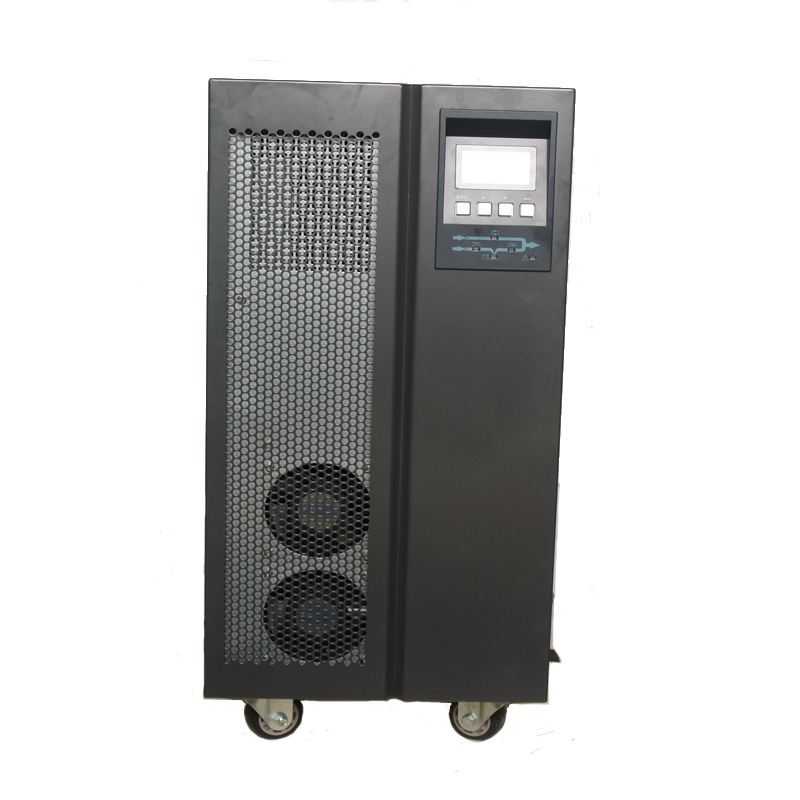

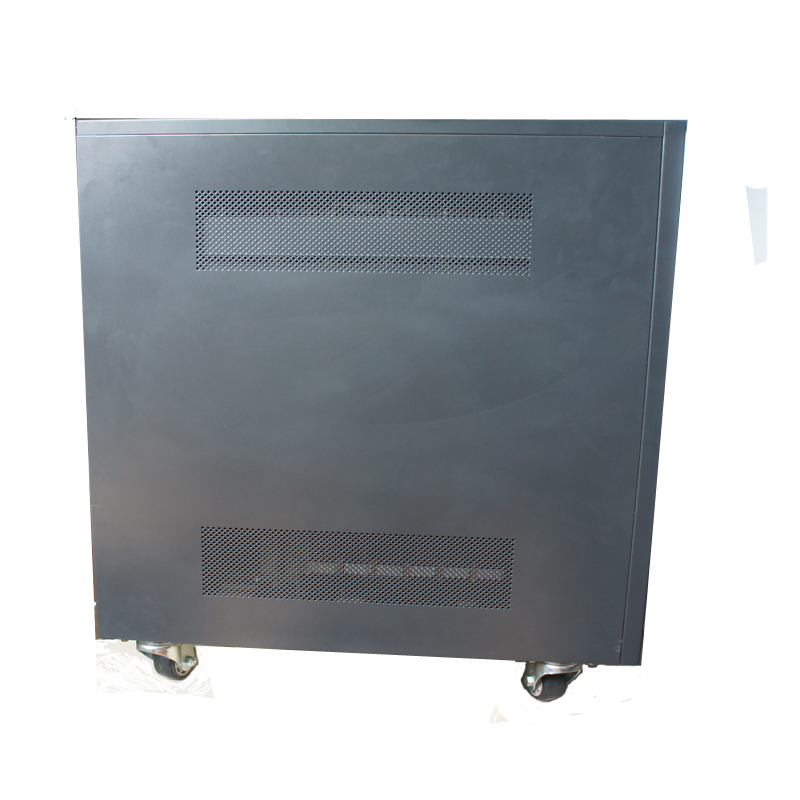

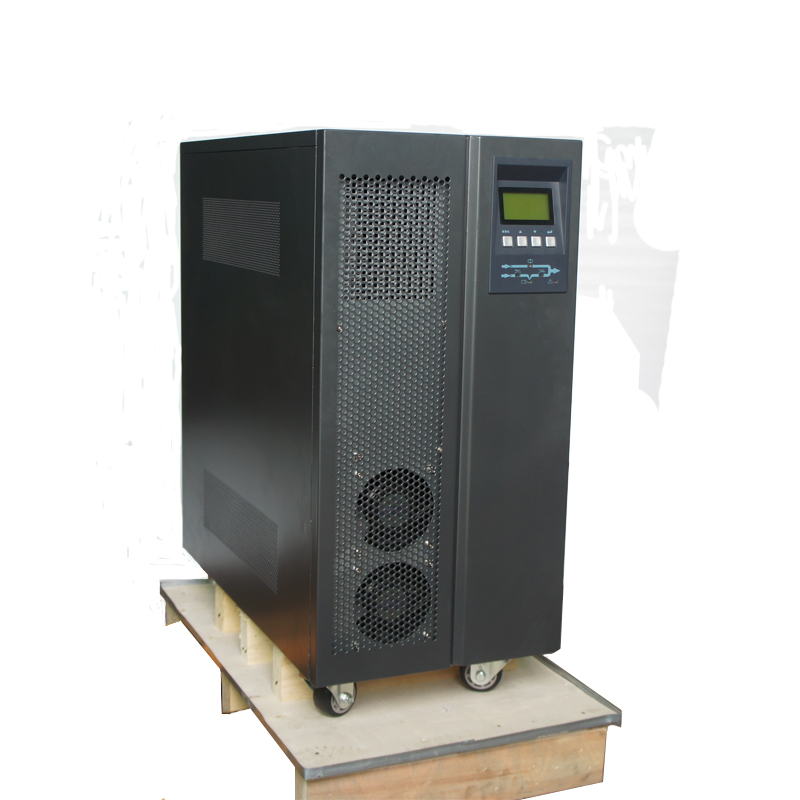

  • 10-20KW Single Phase Industry Inverter
  • Product Model : YK-SN10KW/15KW/20KW
  • Content:*
  • Name:*
  • E-mail:*
  • Telephone:*
  • Code:*
  •
  •
  • Charcater

1. High reliabilityFrequency tracking, noise filtering and low distortion in inverter output because of double-conversion design

2. High adaptabilityA wide range of input frequency, which realizes stable operation of fuel generators

3. High optimal performance of the batteryAn intelligent battery management technology, which guarantees a longer battery lifespan and decreases the times of battery maintenance

4. An advanced constant-voltage charge technology, which activates the battery to the most extent save the charge time and guarantees a longer battery lifespan

5. Overall and reliable protectionA power-on test function, which can avoid the faults because of hazards of the inverter.

6. Overall automatic protection and alarms, such as output overload protection.

7. Efficient IGBT (Insulated Gate Bipolar Transistor)Inversion technology.

Good high-speed switching feature, large-voltage and large-current operating characteristics and voltage drive of iGBT (the fifth-generation IGBT has a lower saturation voltage drop and higher operation effiaency and reliability)

  • Application

 This inverter is mainly used in SPC, computer center, network, billing servers and accident lighting, data centers of users, industrial control equipment, precise medical, system equipment and household appliances.

  • Customize Range

  Any help please contact us freely.

  • Specification



Model

SN-10KW

SN-15KW

SN-20KW

Rated power

10KW

15KW

20KW

Battery

Rated voltage

96VDC

192VDC

192VDC

Charge current

10A-20A

Low-voltage protection

84VDC

168VDC

168

Input

Voltage range

192VAC-288VAC

Frequency

45-65Hz

Output

Frequency

50/60Hz±1%( Inversion mode)

 Voltage range

120VAC/240VAC±5%(Inversion mode)

Output waveform

Pure sine wave

Switching time

10ms( Typical load)

Efficiency

85%100% resistive load

90%100% resistive load

Overload

110-120%/30S;>160%/300ms

Protection function

Battery overvoltage protection, battery undervoltage protection, overload protection, short circuit protection, overtemperature protection,etc.

Ambient temperature for operation

0-40

Ambient temperature for storage

-15 - +50

Operation/storage conditions

0-90% (no condensation)

External dimensions: D*W*Hmm

555*368*695 mm

655*383*795 mm

G.W.(KG)

100

130

170
