  • 12V/24V/48V 30A 40A 50A 60A 100A 120A

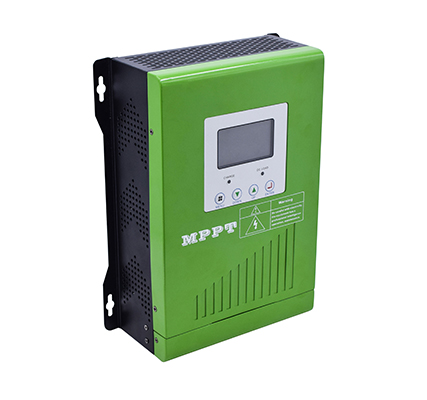

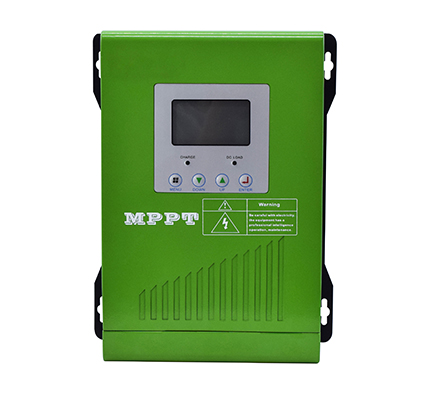

  • Product Model : YK-MTseries
  • Content:*
  • Name:*
  • E-mail:*
  • Telephone:*
  • Code:*
  •
  •
  • Charcater

Introduction:

1. The new generation of MPPT controller produced by our company is a highly intelligent product developed according to the latest technology. This product has many excellent performances and innovative maximum power point tracking technology, which can significantly improve the energy utilization and conversion efficiency of the solar system. Up to 97%.

2. This controller is used in solar off-grid system (independent system) to automatically adjust charging and discharging. The MPPT controller has an advanced tracking algorithm to obtain the maximum power of the solar cell module and charge the battery; the battery charging process of the MPPT controller is optimized to extend the battery life and improve the system performance.



Product features :

Ø PV wide voltage range input

Ø Three-stage charging technology

Ø Setting float charging voltage available

Ø DSP chip control, high precision, high efficiency

Ø Intelligent maximum power point tracking technology

Ø Photovoltaic/battery anti-anti protection/short circuit protection/overcurrent protection

  • Application

 Solar Power System

  • Customize Range

System voltage:12V/24V/48V (Automatic Recognition)

Rated current:30A/40A/50A/60A/100A/120A



  • Specification

Model YK-series

MT30

MT40

MT50

MT60

MT100

MT120

MT50A

MT60A

MT100A

MT120A

Rated charging current

30A

40A

50A

60A

100A

120A

50A

60A

100A

120A

System voltage

12V/24V/48V (Automatic Recognition)

96V

Rated current

 30A

 40A

50A

60A

100A

120A

50A

60A

100A

120A

Max current

 31A

 41A

52A

 62A

101A

121A

52A

62A

101A

121A

Charging mode

 MPPT Intelligent maximum power point tracking technology

Charging type

Three stages: constant current charge, equal charging, Floating charge

Starting time

 ≤ 10s

Dynamic response recovery time

 ≤500us

No load consumption

≤2W

Efficiency

 ≥96.5%

Display

LCD+LED

System identification voltage range

12V:9-15V; 24V:18-30V; 48V:36-60V; 96V:72V-120V

MPPT operation voltage

12V:20-100V; 24V:38-150V; 48V:65-150V; 96V:145V-200V

Max PV input power

12V

360W

480W

600W

720W

1200W

1440W





4800W





5760W





10KW





11KW

24V

720

W

960

W

1200W

1440W

2400

W

2880

W

48V

1440

W

1920

W

2400W

2880W

4800

W

5760

W

Protect function

Function-1

Input and output polarity reverse protection

Function-2

Low voltage protection

Function-3

High voltage protection

Function-4

Short circuit protection

Function-5

Over temperature protection

Cooling method

 Cooling fans

Humidity

 0~90%RHNo condensation

Working temperature

 0-55

Environment temperature

-20~+40

Storage temperature

-40~+70

Acoustic noise

 ≤50dB

Altitude

0~3000M

Dimensions: L*W*H (mm)

225*290*95

270*365*120

Weight (kg)

3

6.8
