60Vdc 25A
Product Model : YK-AD6025

Charcater

Introduction

The adjustable power supply adopts high frequency switching power technology. it is controlled by high performance microcomputer. The voltage and current can be adjusted independently.

The adjustable power supply widely used in industrial control and electronic products aging and testing.It is suitable for all kinds Resistance load, capacitive load, inductive load

Characteristic

1. Wide input range

2. With input surge protection to avoid overshoot at the start of the dc power supply

3. Isolated design

4. Small volume , light weight with high efficiency

5. The output voltage and current are adjustable in the whole range 1% to 100%, which is convenient for users to use flexibly

6. Output voltage and current with high brightness digital tube display

7. Automatic equalizing technology, which supports parallel operation of multiple machines, can achieve higher power output effectively.

8. Support 0-5vdc/0-12Vdc Remote control output voltage and current , Read-back output voltage and current (option)

9. With RS232/RS485 Communication port to connect computer make real-time control (option)

Application

It is widely used in electric power DC screen system, engineering control, communication, scientific research, charge of storage battery, and other equipments.

Customize Range

Regards the Variable DC power supply, We can customize any constant voltage and constant current according to your request.

Input: (Option)

Ø 1 Phase: AC220V±15%，50Hz/60Hz；DC(230～330)V

Ø 3 Phase: AC380V±10%，50Hz/60Hz；DC(450～600)V

Output: (Option, Free combination of voltage and current base on user request)

Ø 1~3000V，Stabilizer voltage value. 1% to 100% adjustable

Ø 1~2000A，Constant current value. 1% to 100% adjustable

Ø Efficiency: ≥88%

Adjustable mode: (Option)

Ø Keystroke type

Ø Knob type

Shell: (Option)

Ø Desk/ tower type /19inch Rack Mount Type

Specification

Brand	YUCOO
Model	YK-AD6025
Input Voltage	1 Phase: AC220V±15%，50Hz/60Hz；
Output Voltage	0.6~60V，Stabilizer value. 1% to 100% adjustable 0.25~25A，Constant current value. 1% to 100% adjustable Max 1500w
Source Voltage Regulation Rate	≤0.5％；
Load Regulation	Stabilizer Voltage ≤1％； Constant Current≤2％
Voltage Display Accuracy	+ 1.2%
Current Display Accuracy	+ 1.5%.
Display form	0.000 to 9999
Output Voltage Overshoot	≤2% of maximum output
Operation Temperature	(-10～45)℃
Over-Temperature Protection	(75~85) C.

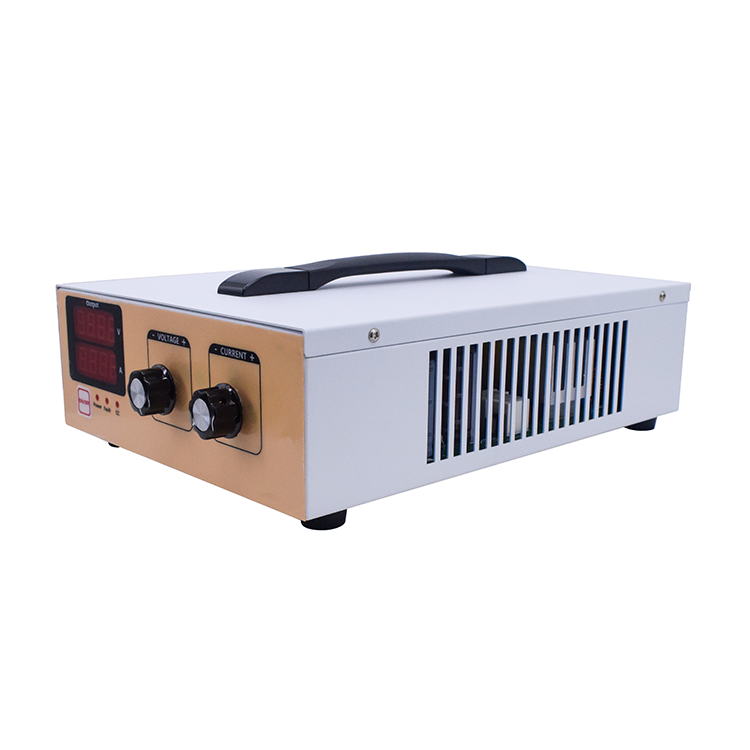

Heat Dissipation Mode/ Cooling mode	Fan heat dissipation
Ripple Voltage	Vpp≤2%
Efficiency	≥86％
Start-up Output voltage setting time	≤3S
Protection	lower voltage, over voltage, over current, short circuit, overheating Protection
Insulation Strength	Input output: AC1500V, 10mA, 1 minutes; Input - machine shell: AC1500V, 10mA, 1 minutes; Output - shell: AC1500V, 10mA, 1 minutes
Insulation Resistance	Input-Output ≥20MΩ； Input-Output ≥20MΩ； Input-Output ≥20MΩ。
MTTF	≥50000h
Remote Control Function (Option)	0-5Vdc /0-10Vdc analog signal control output voltage & current
	0-5Vdc /0-10Vdc analog signal to read-back output voltage & current
	0-5Vdc /0-10Vdc analog Switch signal to control output ON/OFF
	4-20mA analog signal control output voltage & current
	RS232/RS485 Communication port control by computer
Dimension /Net Weight	240×330×88mm 5.5Kg

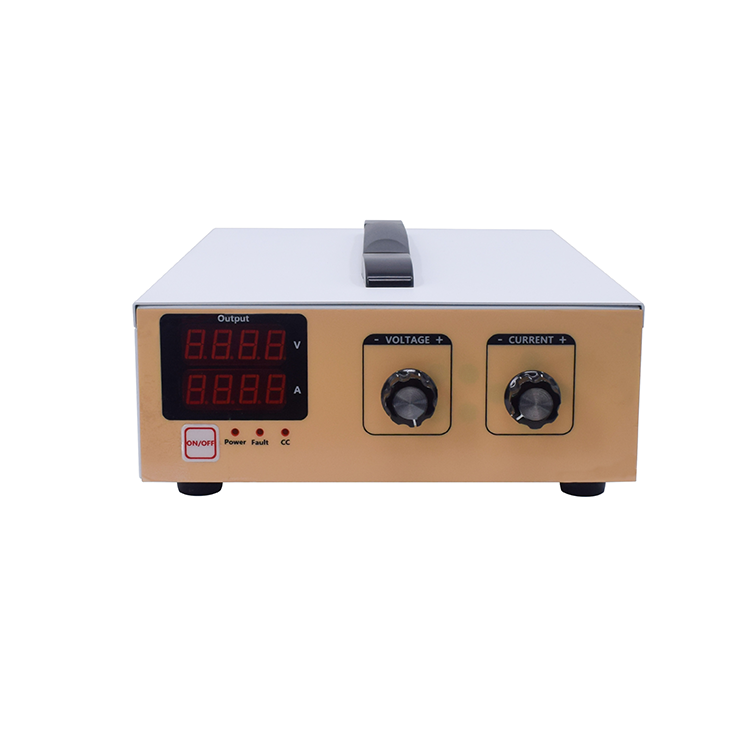

Adjustable Voltage / Current Mode	Knob type & Keystroke type for option
Color	Grey

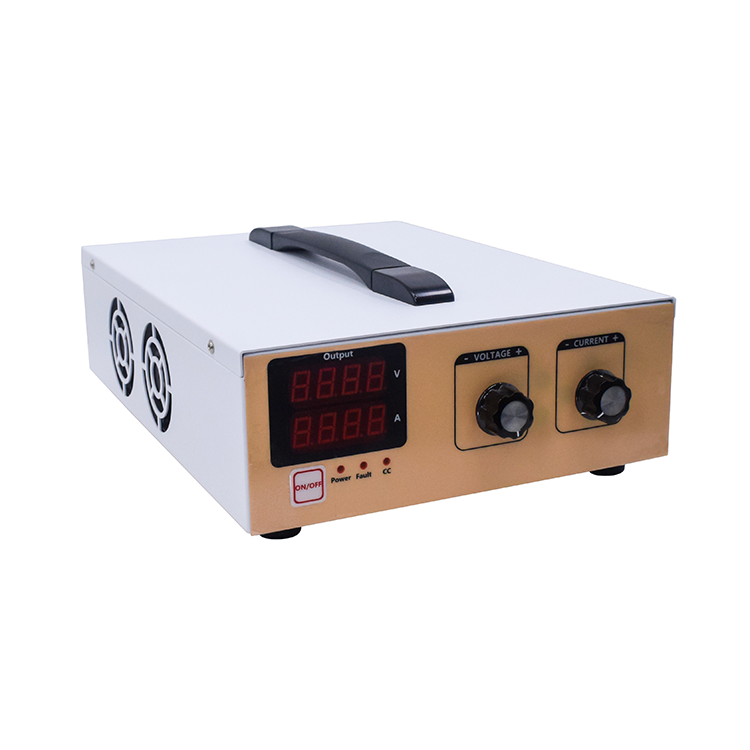

Shell Design	Rack Mount or Tower Type for option
